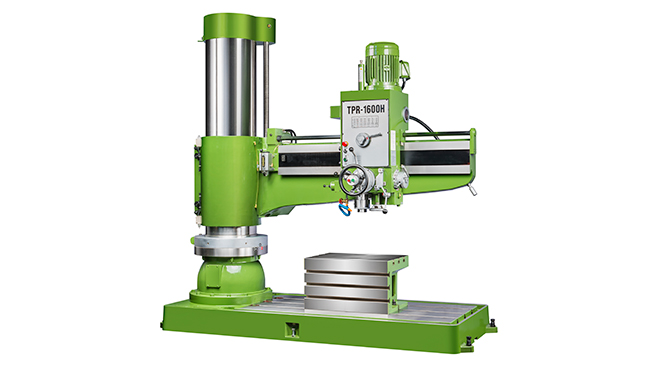

Радиально-сверлильный станок с гидравлическим зажимом TPR-1600H

The Radial Drill Arm adopts IC Timer with advantage of one bottom press, it can automatically release up/down movement, stop, and automatically clamping easy to operate. The spindle can still maintain in original set after the tools change.
Special arm elevating safety device is provided to prevent arm from falling down abruptly after year of usage. It will keep us from injurious dropping whenever the copper nut is excessively worn.
Exclusively for gears type cycling ril pump is furnished to cool off precise gears inside gear box,and minimize excessive wear on gears to lowest extent.

MODEL			TPR-1600H
Dai.of column			432		A
Distance from column surface to spindle center , Max			1550		D+C
Distance from column surface to spindle center , Min			440		C
Travel of spindle head			1110		D
Distance from base surface to spindle end , Max			1640		E
Distance from base surface to spindle end , Min			380		F
Elevating height of Arm			875		E-F-I
Effective area of box table			700×500×400		L×K×H
Dimension of base			2470×1030×200		R×S×Q
Taper hole spindle			MT#5
Stroke of spindle			370		I
R.P.M of spindle (rpm x steps)		50HZ	29-1575×12 steps
R.P.M of spindle (rpm x steps)		60HZ	35-1890×12 steps
Feed of spindle (rev. x steps)			0.07~0.96×6 steps
Main motor (HP)			7 1/2HP
Elevating motor (HP)			2 HP	3 HP
Hydraulic clamping motor (HP)			1 HP
Coolant equipment (HP)			1/8 HP
Machine height from floor (Max.)			3130		M
Base + column height			2660		G
Net weight (approx)kgs			4250
Shipping weight (approx)kgs			4700
Shipping dimensions (LxWxH)			2820×1450×2930
Capacity	Drilling	Stell	65Φ
	Drilling	Cast iron	70Φ
	Tapping	Stell	50Φ
	Tapping	Cast iron	60Φ

Uni-tilt table tilts s full 90 degress. Calibrated indicator shows degree of tilt has accurately planed top
