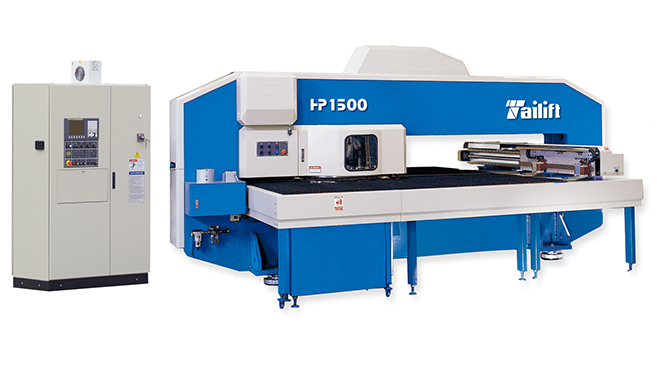

HP Series for Hydraulic
STABLE AND DURABLE WITH SIMPLE OPERATION
PROGRAMMABLE RAM TOP POSITION
Advanced German made H+L Hydraulic system provides fast punching and high durability. Programmable top position of RAM to increase punching speed and reduce noise.
Технические характеристики
| Item | Unit | HP1500 |
|---|---|---|
| Punching Capacity | Tom | 30 |
| X Traverse Length | mm | 1525±10 |
| Y Traverse Length | mm | 1525±10 |
| Max Sheet Size | mm | 1525x3050 |
| Max Sheet Thickness | mm | 6.35 |
| Max Sheet Weight | kg | 110 |
| X Axis Traverse Speed | m/min | 80 |
| Y Axis Traverse Speed | m/min | 70 |
| Max Traverse Speed | m/min | 105 |
| Punch Speed at | hist/min | 280 |
| 25mm Between Holes | ||
| Nibbling Speed | hist/min | 600 |
| Tools Type | Thick turret | |
| Max Punching Diameter | mm | 114.3 |
| Number of Tool Stations | 40 | |
| Number of Auto Index Stations | 2/(DType) | |
| Turret Rotating Speed | rpm | 40 |
| Auto Index Rotationg Speed | rpm | 50 |
| Ram Stroke Distance | mm | 0~31 |
| Working Tables Size | Brush | |
| Number of Sheet Clamps | 2 | |
| Power Supply | KVA | 30 |
| Air Supply | NL/min | 250 |
| Oil Tank Volume | L | 250 |
| Air Pressure | bar | 5 |
| Machine Size | mm | 5190x3250x2550 |
| Net Weight (apporx) | kg | 13500 |
| Size of Control Cabinet | mm | 1200x600x1900 |
| CNC Controller | FANUC Oi-PC | |
| Number of Controllable Axes | 4 | |
| Memory | KB | 256 |
| Serial Interface | RS232 | |
| Punching Accuracy | mm | ±0.1 |
- Specifications are subjects to change without prior notice.
- Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
- Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
Инструментальная турель
| A type 1/2" MAX diameter 12.75mm | 24 ( 8 accept shaped tools ) |
| B type 1-1/4" MAX diameter 31.75mm | 8 ( 8 accept shaped tools ) |
| C type 2" MAX diameter 50.80mm | 4 ( 4 accept shaped tools ) |
| D type 3-1/2" MAX diameter 88.90mm | 2 AUTO. INDEX |
| E type 4-1/2" MAX diameter 114.30mm | 2 ( 2 accept shaped tools ) |

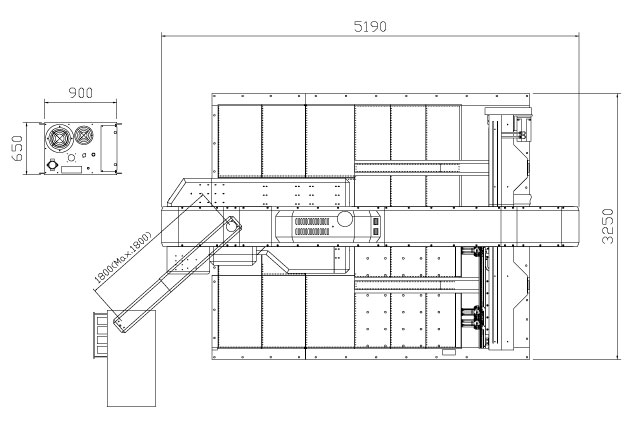

Чертёж
