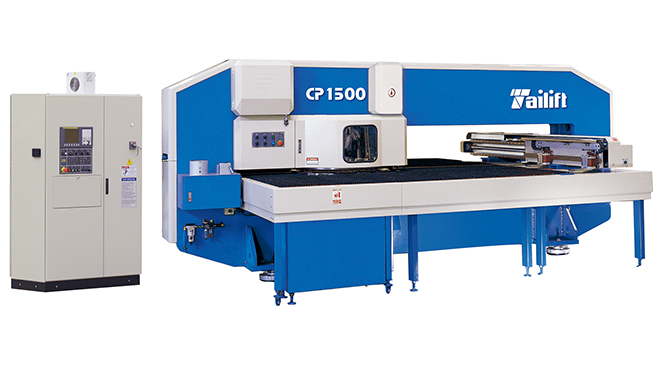

Координатно-вырубной пресс с механическим приводом CP1500

Координатно-вырубной пресс с механическим приводом CP1500

Координатно-вырубной пресс с механическим приводом CP1500

Описание

  • HIGH COST/ PERFORMANCE RATIO
  • YOUR IDEAL INVESTMENT IN LOW COST MONEY GENERATING ASSETS

Технические характеристики

Item Unit CP1500
Punching Capacity Tom 30
X Traverse Length mm 1525±10
Y Traverse Length mm 1525±10
Max Sheet Size mm 1525x3050
Max Sheet Thickness mm 6.35
Max Sheet Weight kg 110
X Axis Traverse Speed m/min 80
Y Axis Traverse Speed m/min 70
Max Traverse Speed m/min 105
Punch Speed at hist/min 210
25mm Between Holes
Nibbling Speed hist/min 350
Tools Type Thick turret
Max Punching Diameter mm 114.3
Number of Tool Stations 40
Number of Auto Index Stations 2/(D Type)
Turret Rotating Speed rpm 40
Auto Index Rotationg Speed rpm 50
Ram Stroke Distance mm 32
Working Tables Size Brush
Number of Sheet Clamps 2
Power Supply KVA 20
Air Supply NL/min 250
Oil Tank Volume Litter 120
Air Pressure bar 5
Machine Size mm 5190x3250x2200
Net Weight (apporx) kg 13500
Size of Control Cabinet mm 1200x600x1900
CNC Controller FANUC Oi-PC
Number of Controllable Axes 4
Memory KB 256
Serial Interface RS232
Punching Accuracy mm ±0.1
  • Specifications are subjects to change without prior notice.
  • Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
  • Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

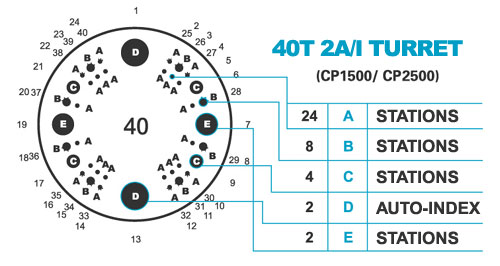

Инструментальная турель

A type 1/2" MAX diameter 12.75mm 24 ( 8 accept shaped tools )
B type 1-1/4" MAX diameter 31.75mm 8 ( 8 accept shaped tools )
C type 2" MAX diameter 50.80mm 4 ( 4 accept shaped tools )
D type 3-1/2" MAX diameter 88.90mm 2 AUTO. INDEX
E type 4-1/2" MAX diameter 114.30mm 2 ( 2 accept shaped tools )

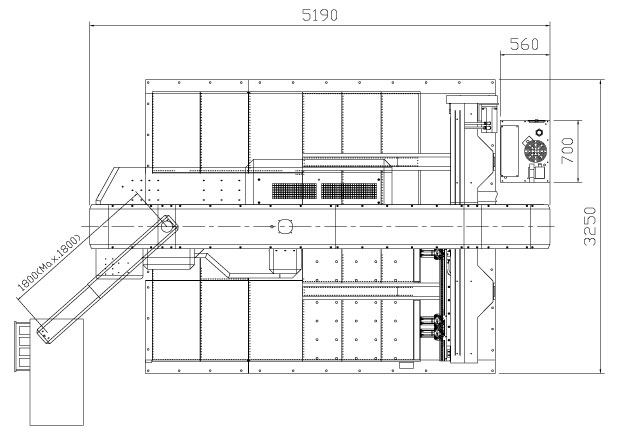

Чертёж
