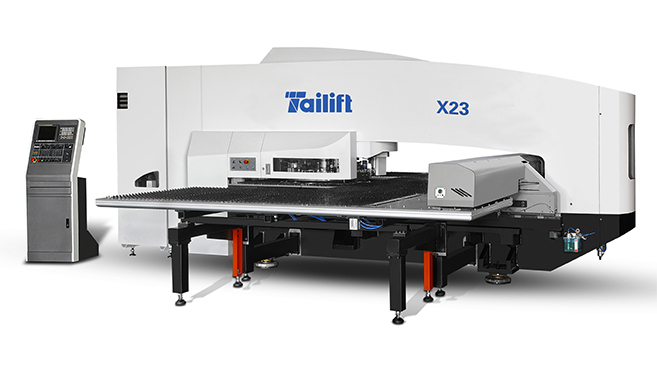

Описание
- FANUC OI-PD CNC CONTROLLER
- HYDRAULIC SERVO UNIT / POWER UNIT
- AUTO. INDEX: 4 (2B+2C) OR 3 (2B+1C) OR 2 (1B+1C)
- TOOL BOX WITH TOOL ADJUSTMENT & MAINTENANCE TOOLS
- 4 SETS ANTI-VIBRATION FOOT MOUNTINGS
- 3 PNEUMATIC CLAMPS
- 57 STATIONS TURRET (48 AND 66 ARE OPTIONAL)
- PUNCH ASSEMBLING JIG
- SCRAP TRAY AND WORK LIGHT
- 160 METER MEMORY CAPACITY( 512 KB )
- BALL & BRUSH WORK TABLE
- OPERATION & MAINTENANCE MANUAL
Технические характеристики
| Item | Unit | X23 |
|---|---|---|
| Punching Capacity | Tom | 30 |
| X Traverse Length | mm | 2500±10 |
| Y Traverse Length | mm | 1250±10 |
| Max Sheet Size | mm | 1250x4980 |
| Max Sheet Thickness | mm | 6.35 |
| Max Sheet Weight | kg | 110 |
| X Axis Traverse Speed | m/min | 100 |
| Y Axis Traverse Speed | m/min | 80 |
| Max Traverse Speed | m/min | 128 |
| Punching Speed at 25mm pitch* | hist/min | 450 |
| Nibbling Speed | hist/min | 1200 |
| Tools Type | Thick turret | |
| Max Punching Diameter | mm | 88.9 |
| Number of Tool Stations | 48 / 57 / 66 | |
| Number of Auto Index Stations | pcs(type) | 4(2B+2C) / 3(2B+1C) / 2(1B+1C) |
| Turret Rotating Speed | rpm | 33 |
| Auto Index Rotationg Speed | rpm | 100 |
| Ram Stroke Distance | mm | 0~31 |
| Working Tables Size | Brush | |
| Number of Sheet Clamps | pcs | 3 |
| Air Supply | NL/min | 250 |
| Air Supply | bar | 6 |
| Oil Tank Volume | Litre | 275 |
| Machine Dimension (L x W x H) | mm | 5940x5220x2420 |
| Net Weight (approx.) | kgf | 14,000 |
| Size of Control Cabinet | mm | 1350x700x2185 |
| CNC Controller | FANUC Oi-PD | |
| Number of Controllable Axes | Axis | 4 |
| RAM Memory | KB | 512 |
| Serial Interface | RS232/RJ45/PCMCIA | |
| Punching Precision* | mm | ±0.1 |
- Specifications are subjects to change without prior notice.
- Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
- Punch speed depends on processing conditions, stroke length, acceleration / deceleration of
Инструментальная турель
| 57 stations | ||
|---|---|---|
| Type | Specification | Q' ty |
| A | 1/2" | 30 |
| B | 1 1/4" | 20 |
| C | 2" | 2 |
| D | 3 1/2" | 2 |
| Auto Index | ||
| B | 1 1/4" | 2 |
| C | 2" | 1 |
| 48 stations | ||
|---|---|---|
| Type | Specification | Q' ty |
| A | 1/2" | 24 |
| B | 1 1/4" | 16 |
| C | 2" | 2 |
| D | 3 1/2" | 2 |
| Auto Index | ||
| B | 1 1/4" | 2 |
| C | 2" | 2 |

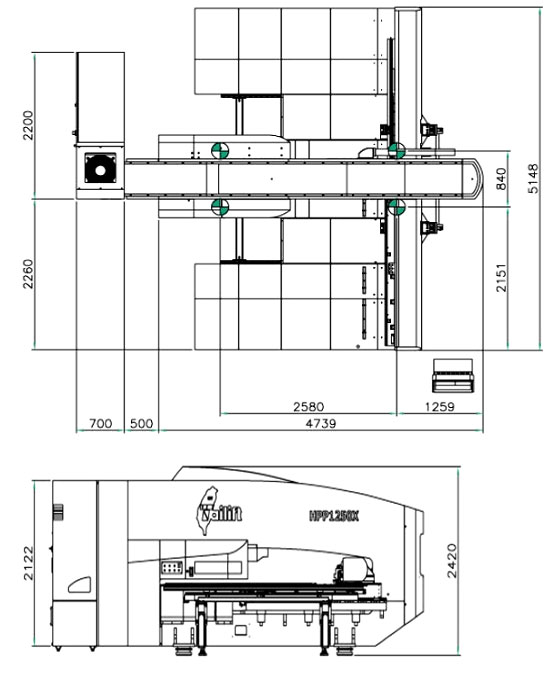

Чертёж
